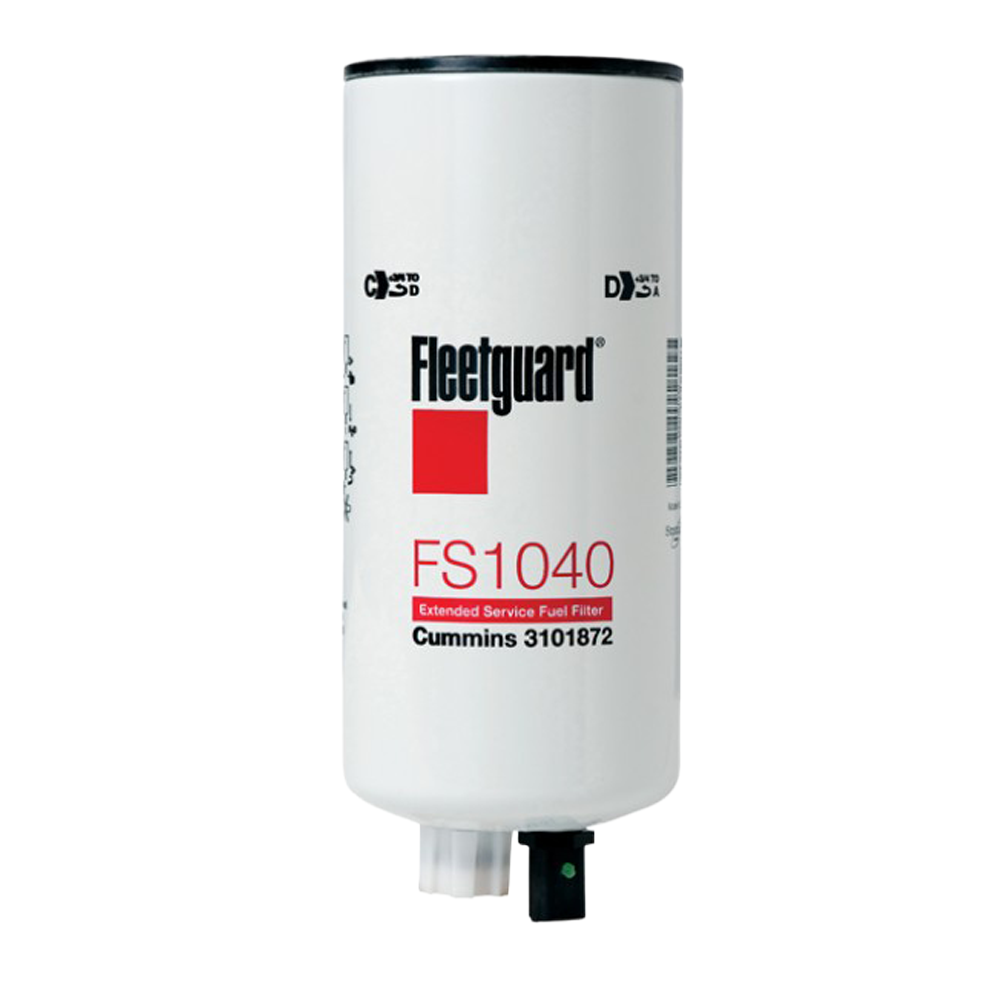

Fuel Water Separator Filter – FS1040

Genuine Cummins Fleetguard Fuel Water Separator Filter – Spin-On Heavy Duty Protection with Optimum Life Suction Side Fuel with Combination WIF Sensor and drain valve.

---

Overall Height:    293.98 mm (11.574 in) Largest OD:        118.11 mm (4.65 in) Seam OD:    118.01 mm (4.646 in) Gasket OD:    118.87 mm (4.68 in) GASKET INSIDE DIAMETER:    101.6 mm (4 in) Thread Size:    M85 X 2-7H INT Standpipe:    NO EMULSIFIED WATER SEPARATION​:    95 % (95 %) FREE WATER SEPARATION:    95 % (95 %)

---

EFFICIENCY, TWA BY SAE J 1985:    98.7 % (98.7 %) MICRON RATING BY SAE J 1985:    25 micron (25 micron)
